SCI论文中怎样描述TEM结果? Part 3. HRTEM结果描述样品的晶格条纹等微观结构信息

2018-01-25 10:16 检测知识





  实例一:High-resolution transmission electron microscopy (HRTEM) was used to characterize the catalysts after reaction (Figure 4). The Au-0.0 sample shows the characteristic spacings of 0.144 and 0.235 nm for the (220) and the(111) lattice planes of FCC metallic gold.The AuCN-1.0 sample(right panels) shows the expected spacings of 0.306 and 0.312 nm for the (012) and (101) lattice planes of Na[Au(CN)2].

  (Ref.: Oyama, S. et al. ChemCatChem 2010, 2, 1582-1586)

  句式模板:High-resolution transmission electronmicroscopy (HRTEM) was used to characterize the catalysts after reaction. The__ sample shows the characteristic spacings of _ and _ nm for the __ and the __lattice planes of FCC __. The __ sample shows the expected spacings of _ and _nm for the_and _lattice planes of __.

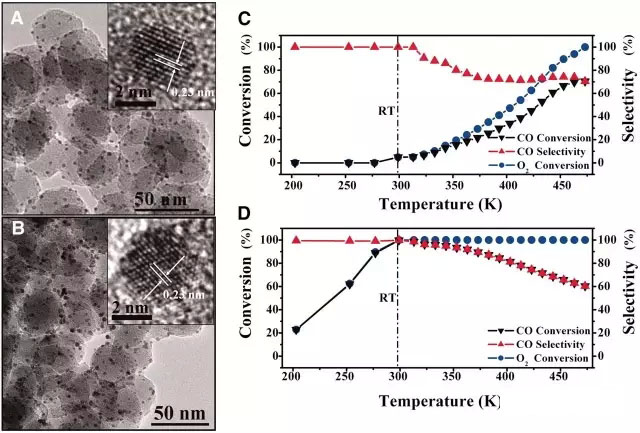

  实例二:High-resolution TEM (HRTEM) images (Fig. 3, A and B, insets) show that NPs over both Pt/SiO2 and Pt-Fe/SiO2 samples present the same face-centeredcubic ( FCC) Pt lattice with a Pt(111) interlayer spacing of 0.23 nm.

  (Ref. : Fu, Q. et al. Science, 2010, 328, 1141-1144)

  句式模板:High-resolution TEM (HRTEM) images show that NPs over __ samples present the same __ lattice with a __ interlayerspacing of _ nm.





  实例三:As shown in Fig. 1c, the lattice fringes of Pt1Pd3 display interplanar spacings of 0.223 and 0.192 nm in the particle, which match well respectively with those of the (111) and the (200) planesof the fcc PtPd alloy.

  (Ref.: Liu, J. et al. Catal. Sci.Technol. 2014, 4, 441–446)

  句式模板:As shown in __, the lattice fringes of__ display interplanar spacings of _ and _ nm in the particle, which match well respectively with those of the __ and the __ planes of the fcc __.
